pipe making machine for carbon steel sheet

FOB Reference Price:Get Latest Price
US $100,000-760,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
1 Unit/Units per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Type:
Pipe Mill
Pipe Material:
Carbon Steel
Application:
Drain Pipe
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
kingjime
Model Number:
KJ115
Voltage:
220/380/440V-50HZ 660V-60HZ
Certification:
CE ISO
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
wooden packing
Delivery Time
90 days

Specifications

pipe making machine for carbon steel sheet
thickness:0.2-8.0 mm
Diameter :7-219 mm

pipe making machine for carbon steel sheet

I. Detailed Product Description:

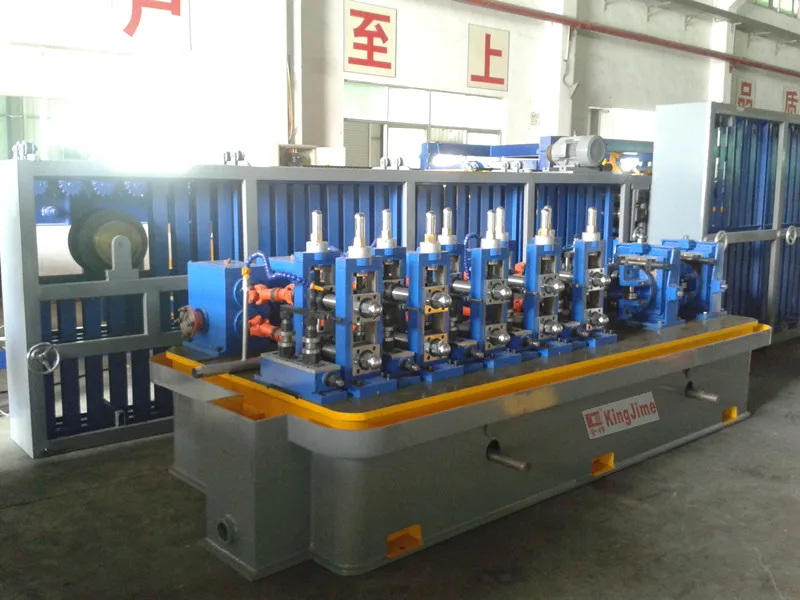

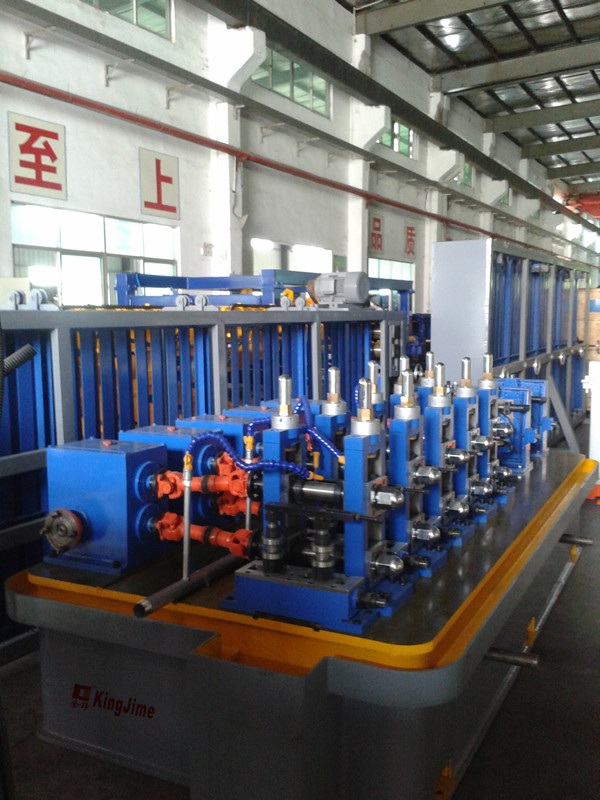

    Solid state high-frequency pipe production line is designed to produce welded pipes as well as square and rectangular pipes and formed sections of the corresponding size. The products conform to BS/ASTM Standard. Adopting the advantages of the equipment of the same kind at home and abroad, each element of the production line is designed with new ideas. The application of Germany technology is PLC automatic control system. It is British Eurotherm digital speed regulating unit guarantee that the production line works reliably and operates and main tams easily. Being the best inside the stare, the production line can also rival the advanced ones in the world.

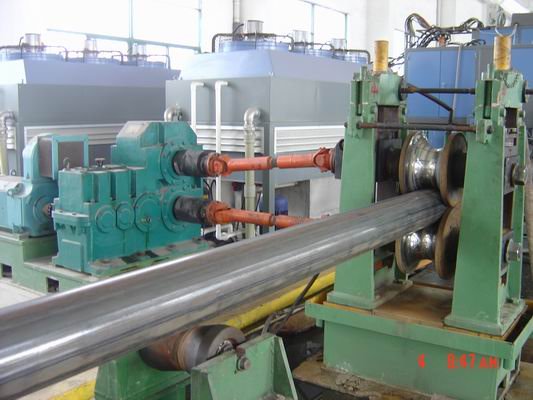

This is milling plant is the facility to consecutively form and weld the slit strips in horizontal direction for the desirable size. It is using high frequency induction device to mill and cut to pipe.

Metal pipes are made by tube machine with  decoiler PLC controlling system,hydraulic system,forming cutting, run out table

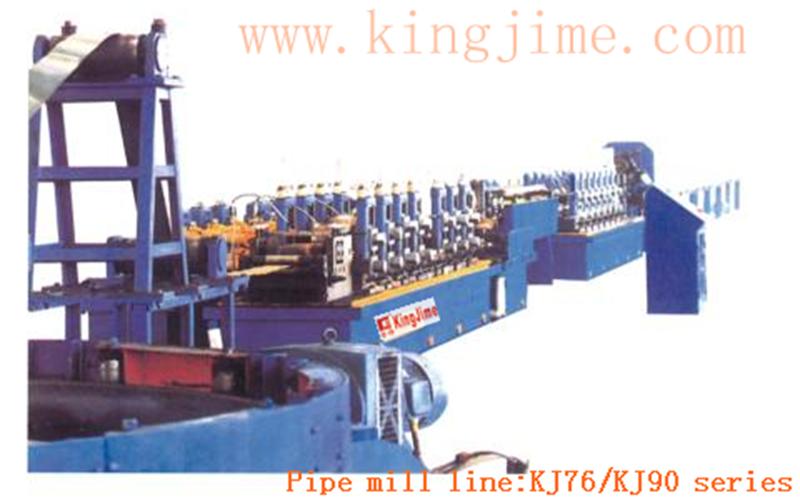

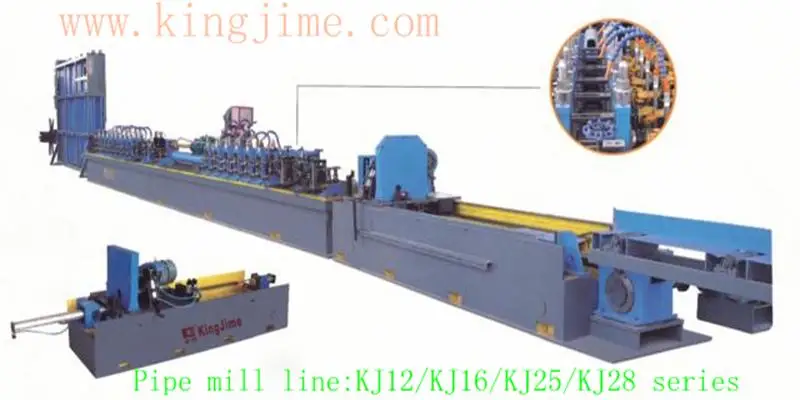

main machinery:
1.decoiler
2.shear and butter welder
3.accumulator
4.straighener

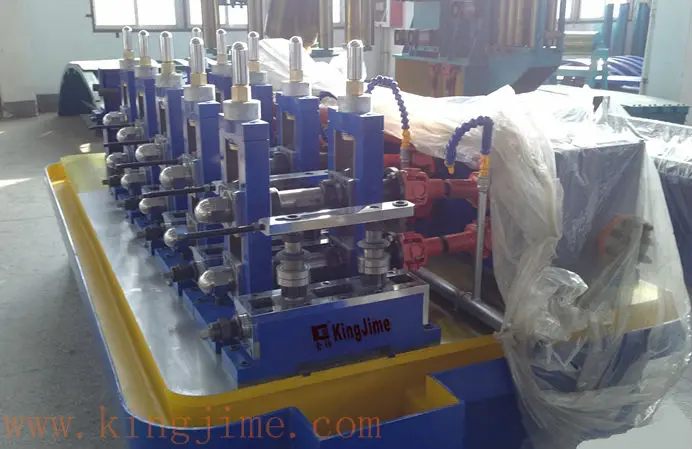

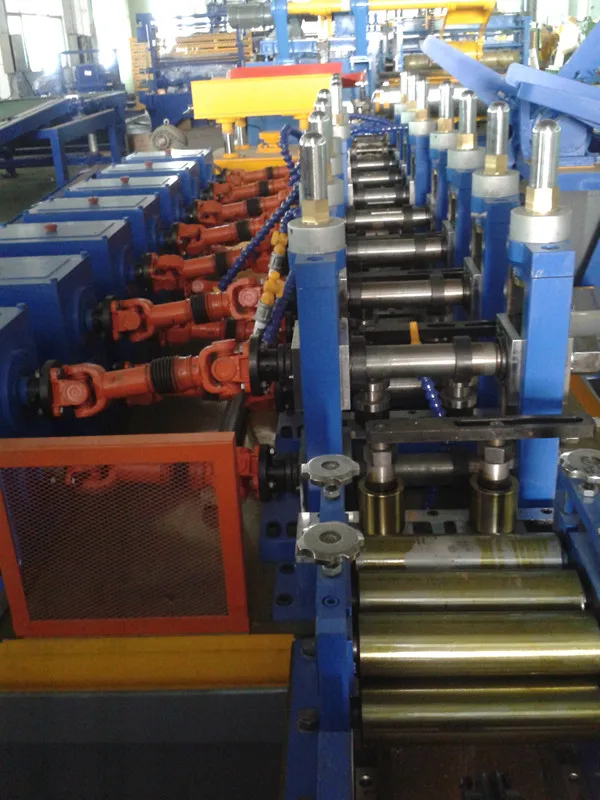

5.Forming machine
6.welder and cleaner
7.cooler
8.size mill
9.flying saw cutter
10.run out table
11.pneumatic system
12.Electrical control

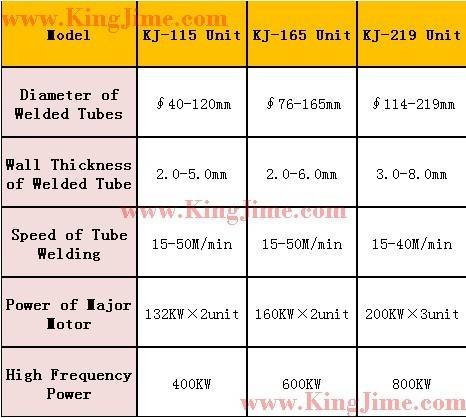

Main technical data
ModelKJ12KJ16KJ25KJ28KJ45KJ60KJ76KJ90KJ115KJ165KJ219
Diameter of welded tubes
(mm)
7-168-258-3010-3813-5016-6325-8032-9540-12076-165114-219
Wall thickness of welded tubes(mm)0.2-0.50.3-1.00.4-1.20.6-1.50.8-2.01.0-3.01.5-41.5-4.52.0-5.02.0-6.03.0-8.0
Speed of tube welding
(m/min)
30-10030-9030-9030-8020-7520-6515-6015-5015-5015-5015-40
High frequency power
(KW)
6060100100100200300300400600800

About us
Kingjime machine Limited is a TaiWan of Chinese technological enterprise manufacturer with Japanese technology to make steel coil cut to length line ,slitting line ,High Frequency pipe mill machine,feeder machine .We owned National high and new technology enterprise with 40 patents and intellectual property rights over the last for years.welcome to kingjimemachine as they!
we have established steady cooperation with customers in over 58 countries
